Details

---

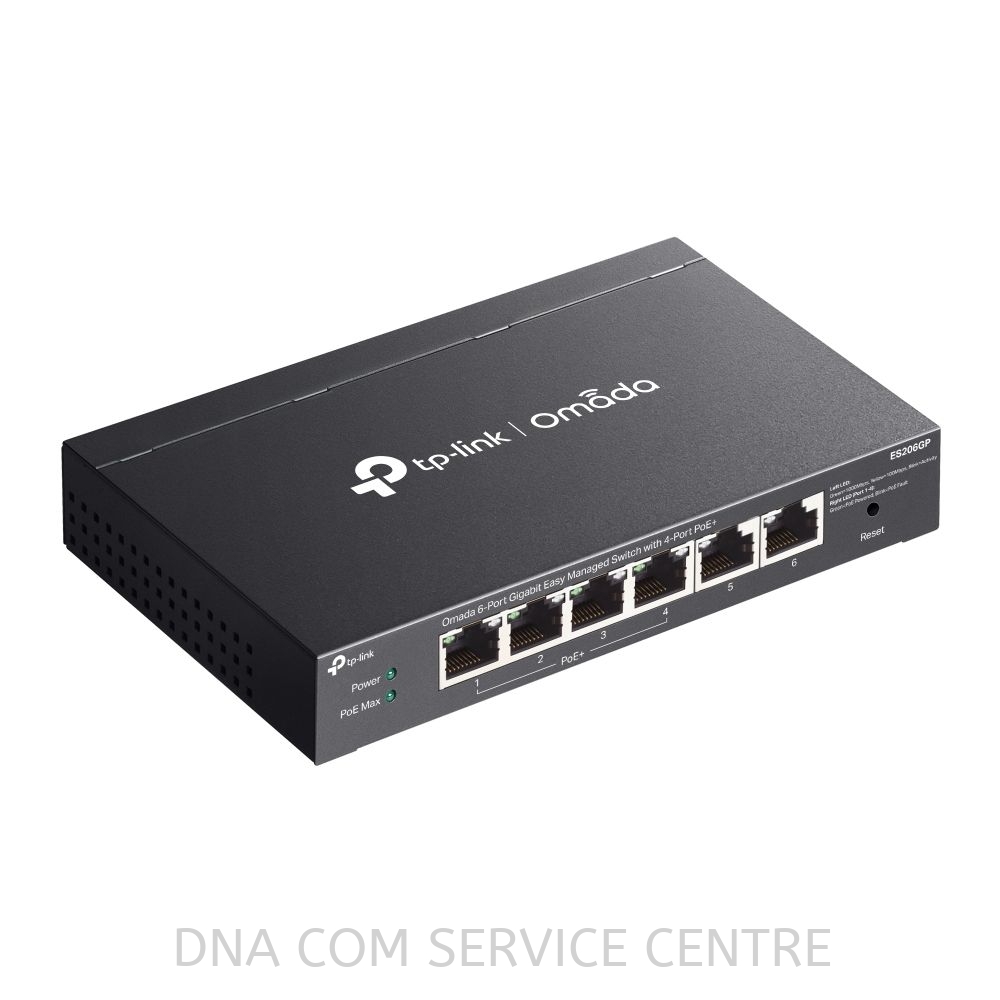

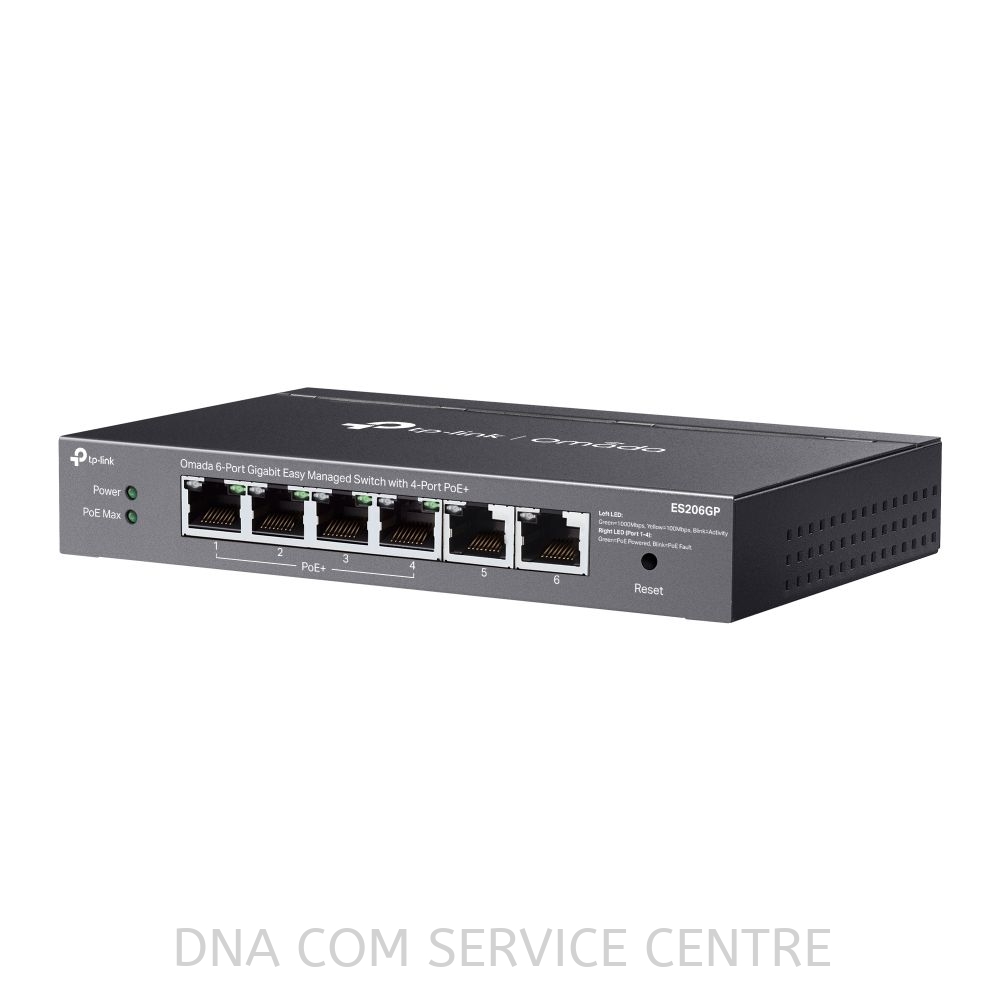

The Omada ES206GP is a compact 6‑port Gigabit switch with 4 PoE+ ports, designed for small business, CCTV, and office setups. It delivers a 65W PoE budget, silent fanless operation, and easy cloud management via TP‑Link’s Omada platform. omadanetworks.com static.tp-link.com

🔑 Key Product Details – Omada ES206GP

Hardware Features

• Ports: 6 × Gigabit RJ45 (4 × PoE+ 802.3af/at, 2 × non‑PoE)
• PoE Budget: 65W total, up to 30W per port
• Switching Capacity: 12 Gbps
• Packet Forwarding Rate: 8.93 Mpps
• MAC Address Table: 8K entries
• Packet Buffer: 4 Mbit
• Jumbo Frame Support: 15 KB static.tp-link.com

Performance & Reliability

• Transmission Method: Store and Forward
• PoE Features: Fast PoE, Perpetual PoE, Auto Recovery
• Advanced Functions: VLAN, QoS, IGMP Snooping, Port Isolation, Loop Prevention
• PoE Distance: Up to 250m for surveillance setups omadanetworks.com

Physical & Environmental

• Design: Fanless, durable metal casing

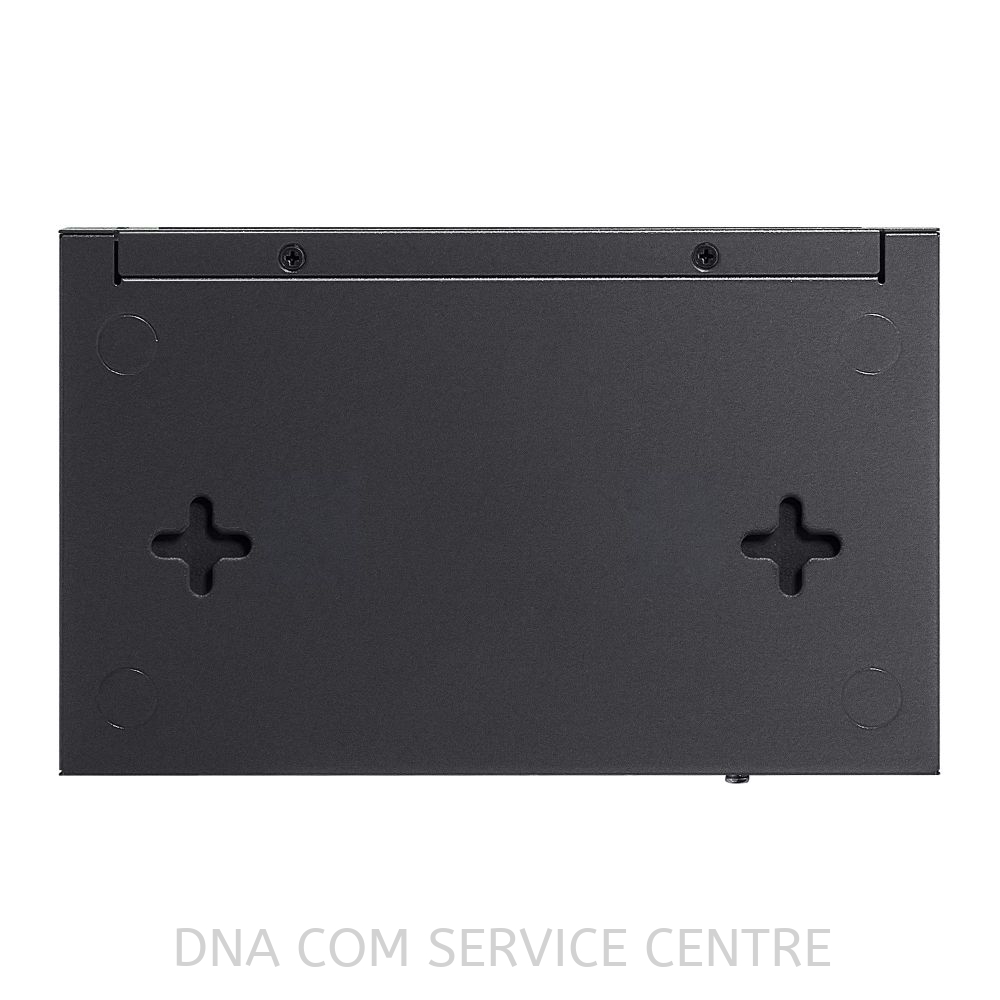

• Mounting: Desktop or wall‑mount
• Dimensions: 158 × 100.7 × 25.4 mm (6.2 × 4.0 × 1.0 in)
• Weight: 0.45 kg
• Operating Temperature: –5 °C to 40 °C
• Surge Protection: ±6 kV (Ethernet ports)
• ESD Protection: Air ±8 kV, Contact ±4 kV static.tp-link.com

Power

• Adapter Input: 100–240V AC

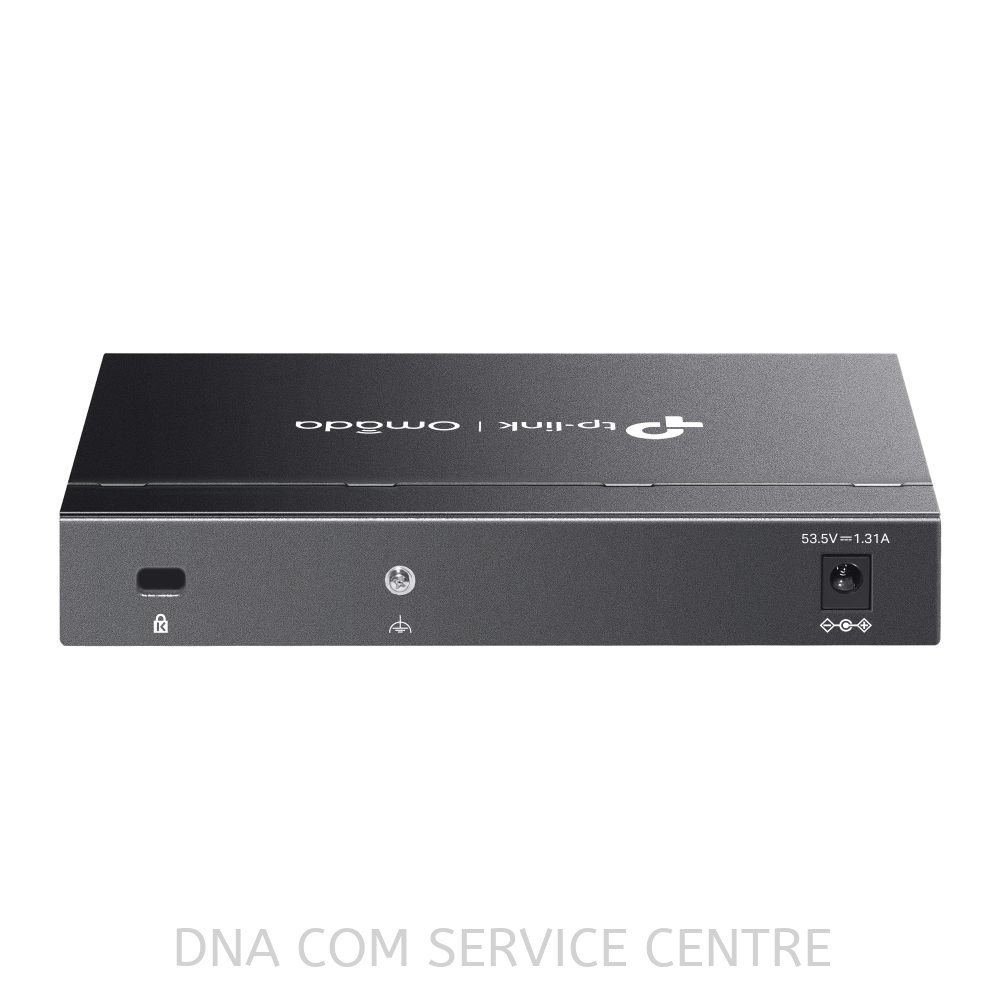

• Output: 53.5V DC / 1.31A
• Max Power Consumption: 76.6W (with full PoE load)
• Standby Consumption: 2.9W static.tp-link.com

Management

• Omada SDN Support: Works with hardware, software, or cloud controllers
• Cloud Access: Free Omada Cloud Essentials (no extra fees)
• Control Options: Web browser or Omada mobile app
• Features: Zero‑Touch Provisioning (ZTP), centralized monitoring, batch configuration omadanetworks.com

---

📌 Use Cases

• CCTV/IP Camera setups (PoE+ up to 30W per port for IR or PTZ cameras)
• Small office networks (PCs, printers, Wi‑Fi APs)
• Retail shops or cafés needing reliable PoE for APs and cameras
• Surveillance networks requiring long‑distance PoE (up to 250m)

---

⚠️ Considerations

• PoE Budget: 65W is enough for 4 mid‑power devices (e.g., cameras or APs), but not for many high‑power PTZ cameras.
• Temperature Range: Limited to –5 °C to 40 °C, so not ideal for outdoor enclosures without cooling.
• No SFP uplinks: Only RJ45 ports, so fiber expansion requires media converters.
