Details

---

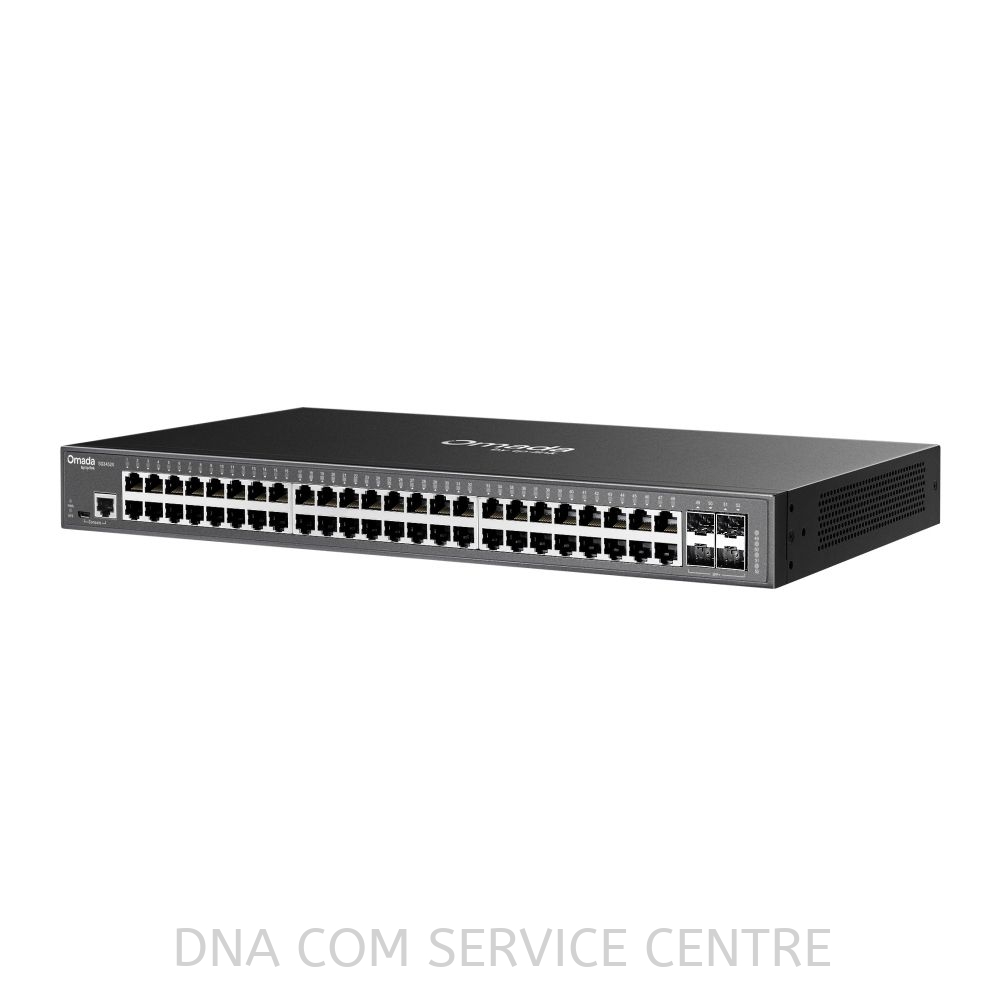

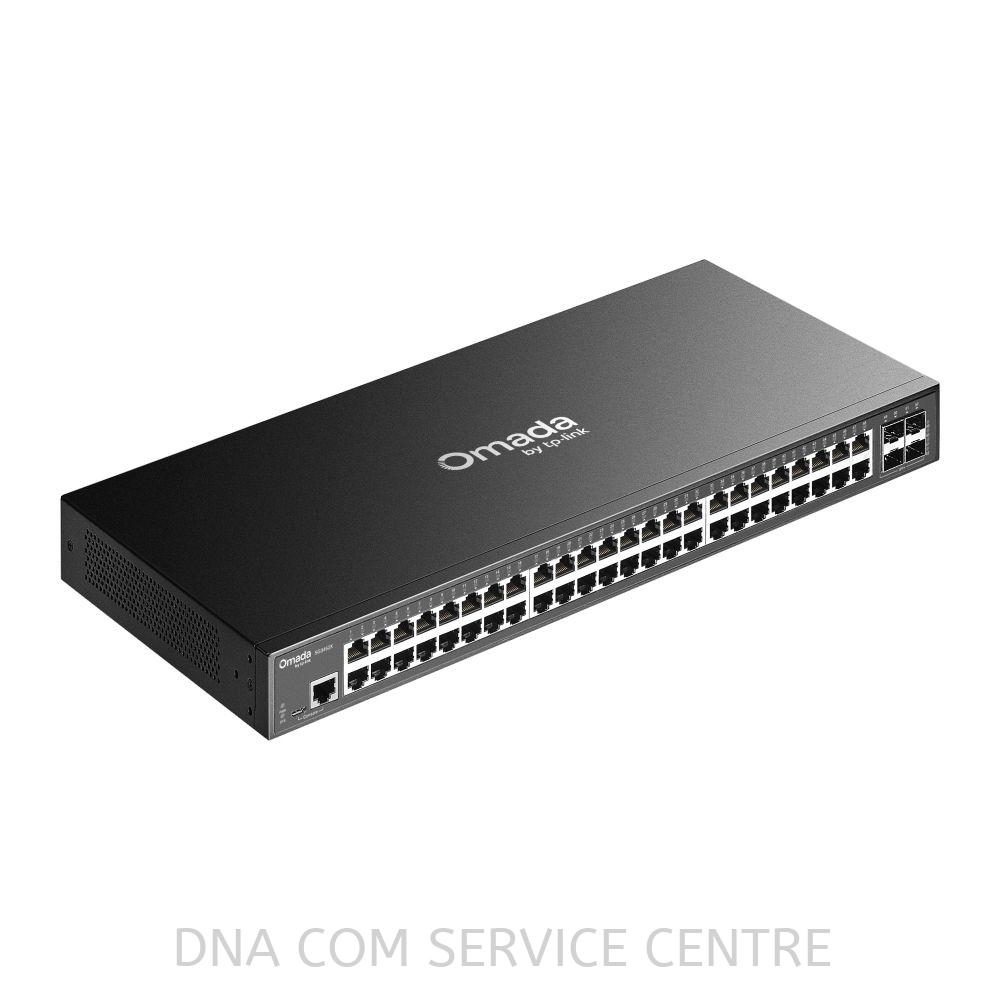

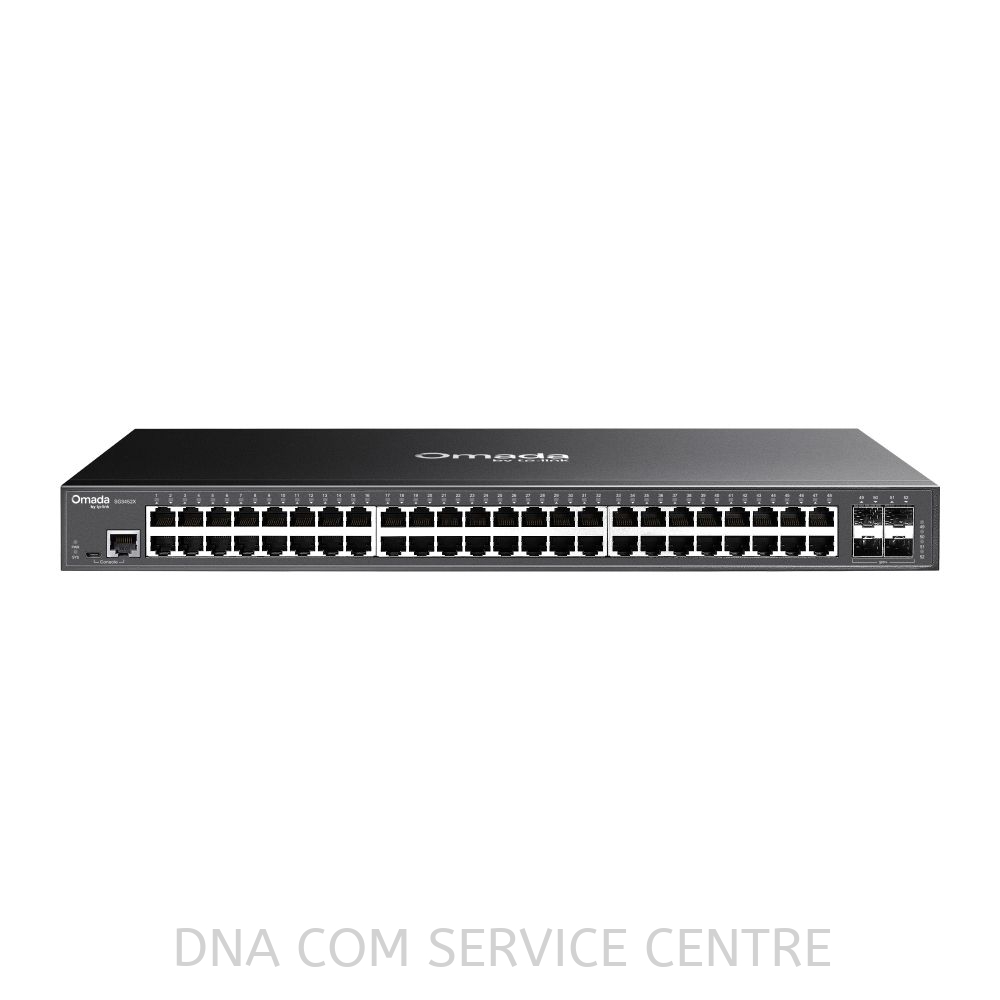

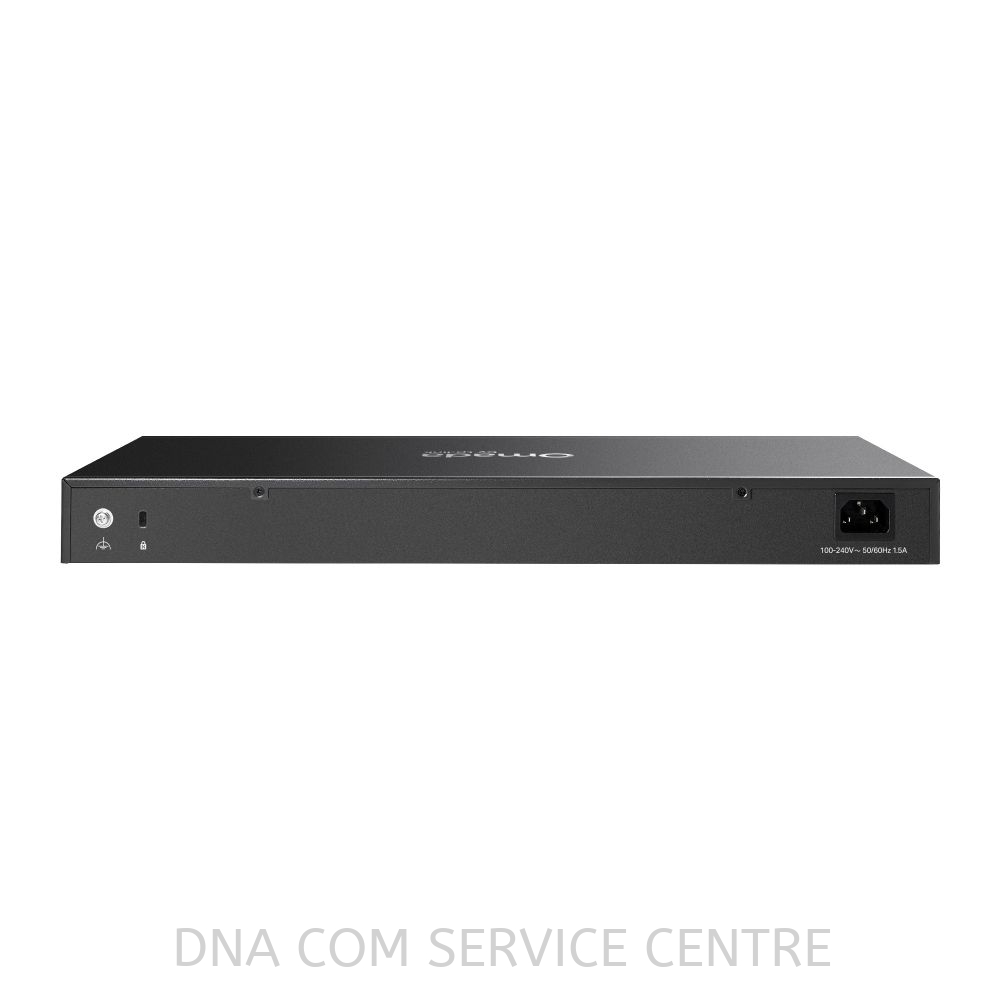

The TP‑Link Omada SG3452X is a high‑performance 48‑port Gigabit L2+ managed switch with 4 × 10G SFP+ uplinks, designed for enterprises or offices that need a future‑proof backbone with centralized cloud management. It’s ideal if you plan to expand into 10G networking for servers or NAS.

---

📦 Product Highlights – Omada SG3452X

• Ports: 48 × 10/100/1000 Mbps RJ45 + 4 × 1/10G SFP+ slots
• Switching Capacity: 176 Gbps
• Forwarding Rate: 130.94 Mpps
• Management Options:
  • Standalone via Web GUI, CLI, Telnet, SSH, SNMP, RMON
  • Integrated into Omada SDN for centralized cloud management (Omada Controller + app)
• Advanced Features:
  • VLAN, ACL, QoS, IGMP Snooping, OAM, DDM
  • Static Routing (IPv4/IPv6) for efficient internal traffic
  • ERPS (Ethernet Ring Protection Switching) for fast recovery in ring topology
• Security: IP‑MAC‑Port binding, ACL, Port Security, DoS defense, DHCP Snooping, 802.1X, Radius Authentication
• Design: Fanless, silent operation, durable metal casing, rackmountable (fits 42U rack)
• Dimensions: 440 × 220 × 44 mm
• Power Consumption: Max ~33W, very efficient for a large switch

---

✅ Why Choose SG3452X

• Future‑proof backbone: 10G SFP+ uplinks allow high‑speed connections to servers, NAS (like Synology DS720+ with 10G NIC), or other switches.
• Enterprise‑grade performance: Higher throughput and packet forwarding compared to SG3452.
• Silent operation: Fanless design makes it suitable for office environments.
• Cloud management: Works seamlessly with Omada SDN for centralized monitoring and configuration.
