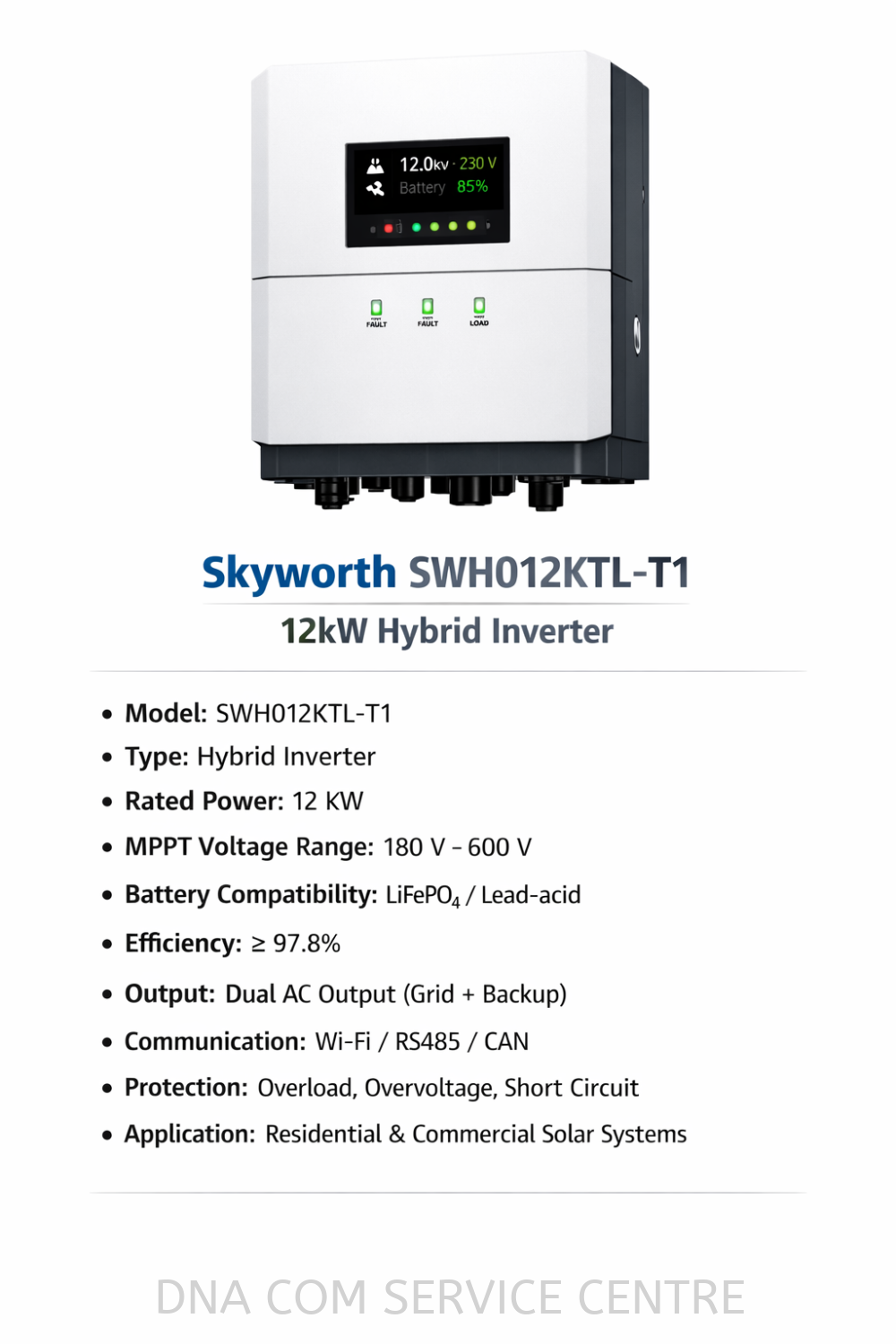

The Skyworth SWH012KTL‑T1 12 kW Hybrid Inverter is a high‑efficiency, single‑phase inverter designed for residential and commercial solar systems, offering up to 97.5 % conversion efficiency, dual MPPT inputs, and IP65 protection for outdoor installation. It supports both grid‑connected and battery‑backup operation, making it ideal for hybrid solar setups in Malaysia’s climate.

Category	Details
Model	Skyworth SWH012KTL‑T1
Rated Output Power	12 kW
Max. Peak Power	24 kVA
Output Voltage	220 / 230 / 240 V (single‑phase) / three‑phase (parallel up to 6 units)
Output Frequency	50 / 60 Hz (± 0.3 Hz)
Power Factor	0.8 leading to 0.8 lagging
THDi	< 3 % (total harmonic distortion)
Switching Time	10 ms (typical)
Battery Type	Lead‑acid / Li‑ion / User‑defined
Rated Battery Voltage	48 V DC (40–60 V range)
Max. Grid Charging Current	120 A
PV Input	2 × MPPT trackers (22 A each)
Max. PV Array Power	6,600 W + 6,600 W (13.2 kW total)
MPPT Voltage Range	125 – 425 V DC
Max. Open‑Circuit Voltage	500 V DC × 2
Efficiency	MPPT Tracking 99.9 %  •  Max 97.5 %  •  European 97.0 %
Protection Degree	IP65 (water‑ and dust‑resistant)
Cooling Method	Forced air cooling
Operating Temperature	−25 °C to +60 °C (derating > 45 °C)
Dimensions (W × H × D)	440 × 670 × 240 mm
Weight	37 kg
Communication Interfaces	RS485 / CAN / USB / Dry contact  •  Optional Wi‑Fi / GPRS
Certifications	IEC 62109‑1 & ‑2, EN 61000‑6‑1 & ‑3, FCC Class B, RoHS
Safety Protections	PV reverse protection, anti‑islanding, residual‑current monitoring, insulation resistance monitoring, short‑circuit, over‑current, over‑voltage, surge protection

🔋 Performance Highlights

• High Efficiency: Up to 97.5 % conversion rate for maximum solar utilization.

• Smart Hybrid Design: Supports solar + battery + grid integration for uninterrupted power.

• Scalable System: Parallel operation of up to 6 units for larger installations.

• Durability: IP65 rating and forced air cooling ensure reliable operation in Malaysia’s humid conditions.

• Flexible Monitoring: Built‑in RS485 and optional Wi‑Fi allow real‑time data tracking and remote management.

• Residential solar systems requiring battery backup.

• Small business and commercial installations needing stable hybrid power.

• Off‑grid or semi‑grid projects in areas with frequent power fluctuations.

For full technical documentation and installation manuals, visit the official Skyworth PV product page below.
