Details

---

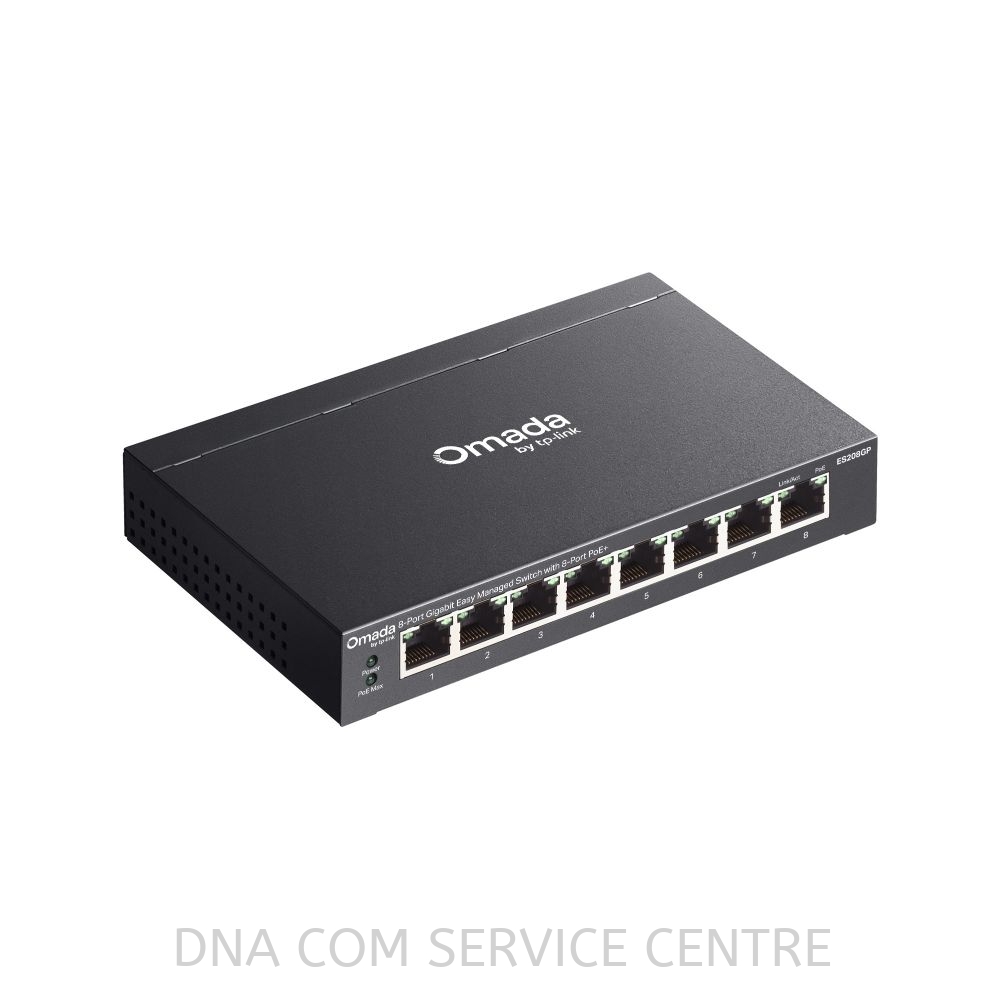

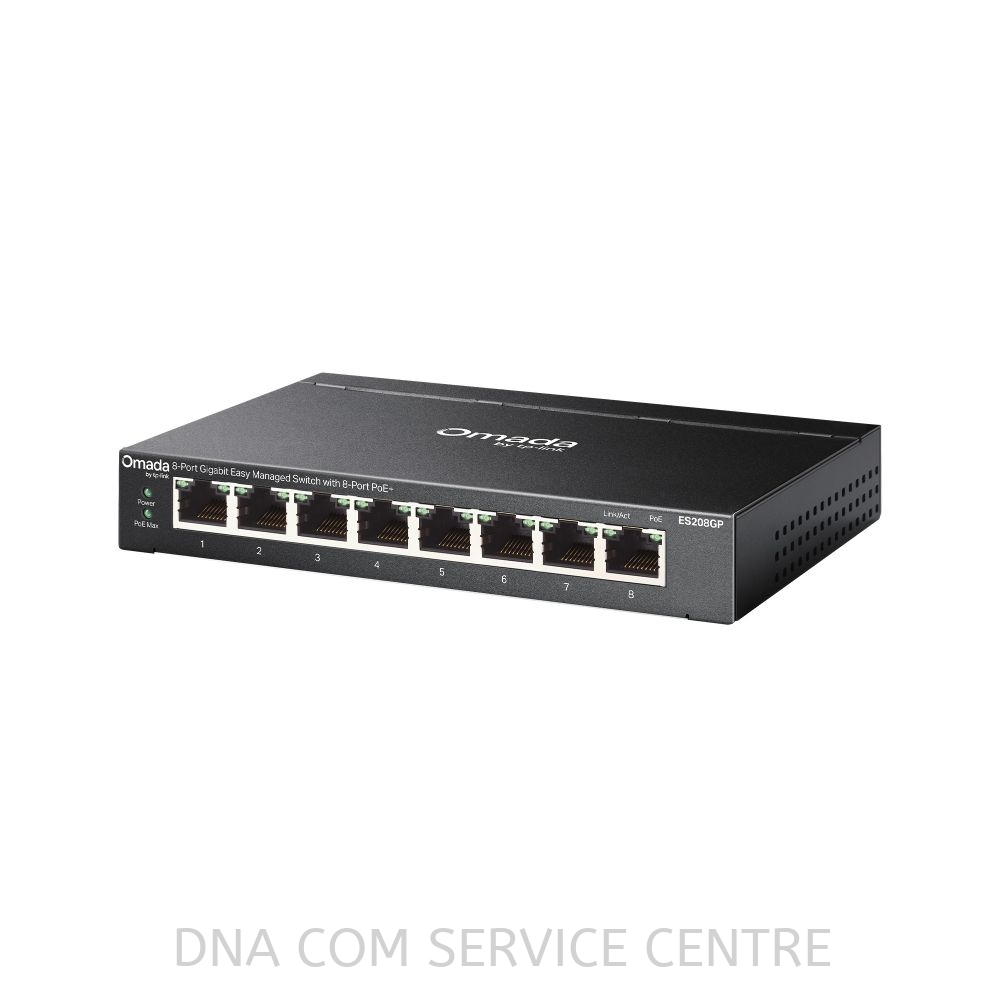

The TP‑Link Omada ES208GP is an 8‑Port Gigabit Easy Managed Switch with full PoE+ support, designed for surveillance and small business networks. It delivers a total PoE budget of 64W, centralized cloud management, and silent fanless operation.

🔧 Key Product Details – Omada ES208GP

Hardware Features

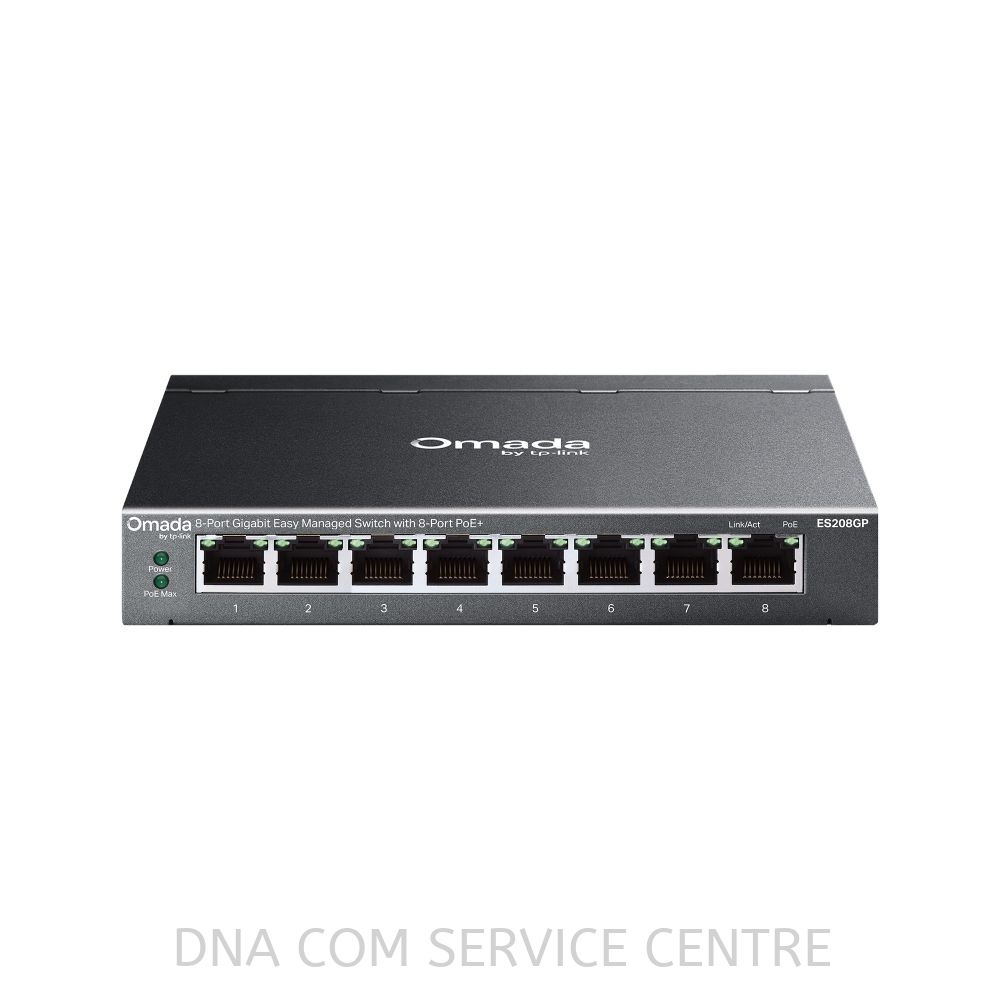

• Ports: 8 × 10/100/1000 Mbps RJ45 PoE+ ports (802.3af/at compliant)

• PoE Budget: 64W total, up to 30W per port

• Switching Capacity: 16 Gbps

• Packet Forwarding Rate: 11.9 Mpps

• MAC Address Table: 8K entries

• Packet Buffer: 4 Mbit

• Jumbo Frame Support: 15 KB

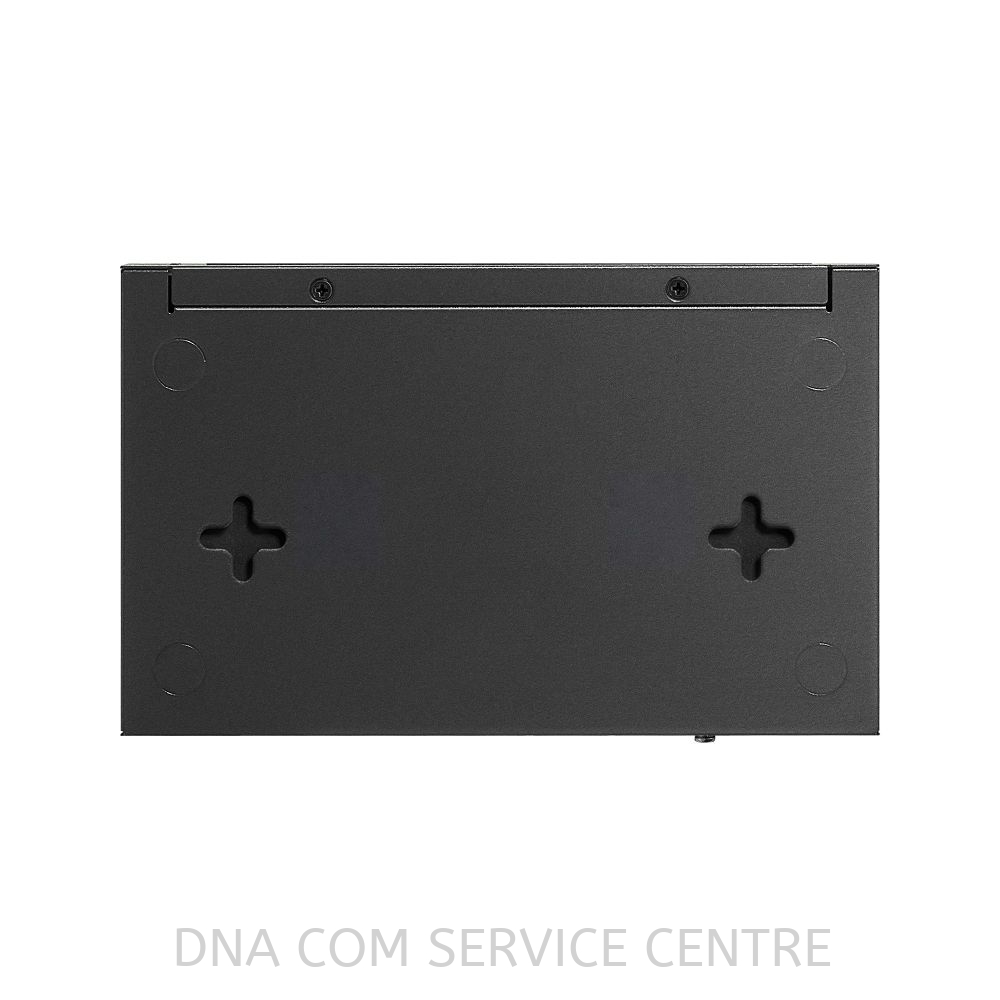

• Design: Fanless, durable metal casing, desktop/wall mounting

Performance & Reliability

• Transmission Distance: Up to 820 ft (250 m) PoE

• Functions: Remote camera reboot, QoS, port isolation, VLAN, IGMP snooping, automatic loop prevention

• Surge Protection: ±6 kV on Ethernet ports

• Noise Level: Max 14.1 dBA (virtually silent)

• MTBF: ~663,000 hours @ 25°C

Power & Consumption

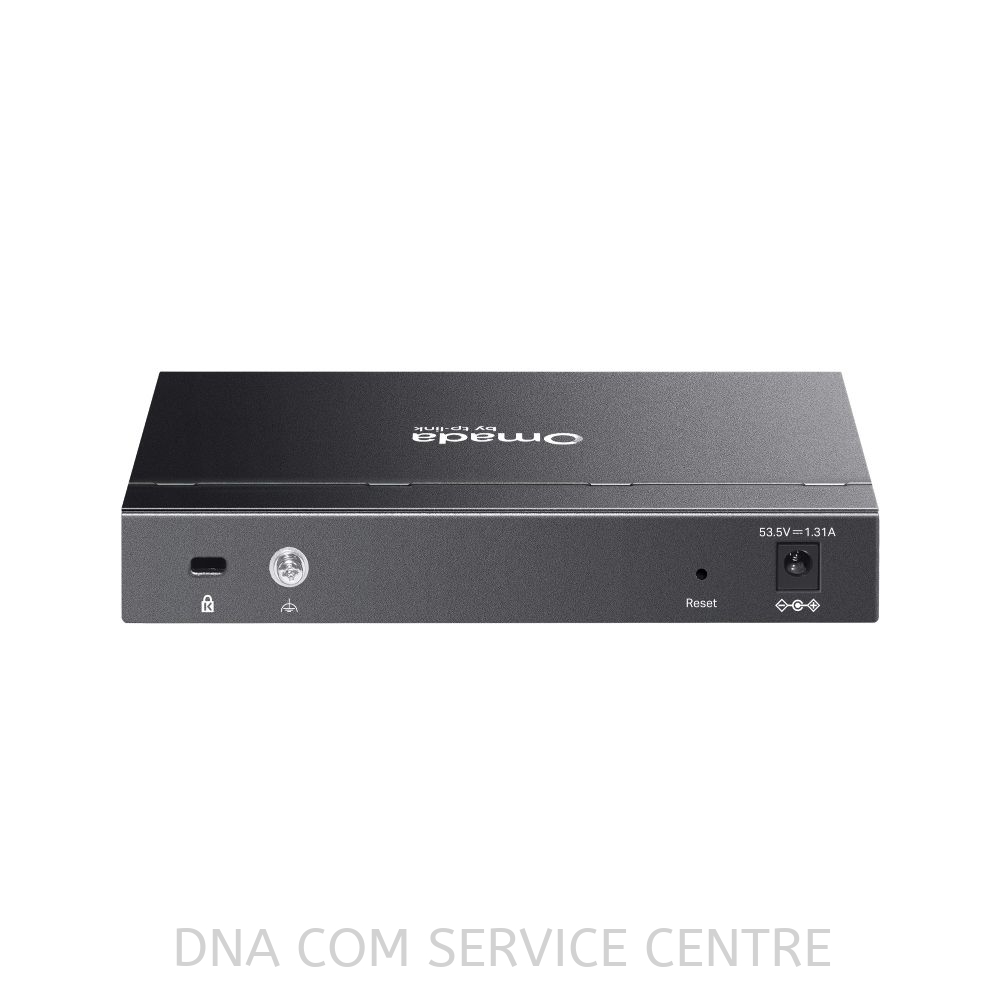

• Power Supply: AC/DC adapter (Input: 100–240V AC; Output: 53.5V DC/1.31A)

• Max Power Consumption: ~69W (with full PoE load)

• Heat Dissipation: ~234 BTU/hr

Management & Software

• Centralized Cloud Management: Via Omada Hardware Controller, Software Controller, or Cloud‑Based Controller

• Zero‑Touch Provisioning (ZTP): Supported

• Management Tools: Web GUI, Omada App, DHCP client, cable diagnostics

• QoS: 802.1p/DSCP priority, 8 queues, WRR scheduling

• VLAN: Supports up to 32 VLAN groups, 4K VID
